FAF77減速機加電機重量：

FAF77減速機加0.37KW電機重量103.5KG，F(xiàn)AF77減速機加0.55KW電機重量108KG，F(xiàn)AF77減速機加0.75KW電機重量109KG，F(xiàn)AF77減速機加1.1KW電機重量113KG，F(xiàn)AF77減速機加1.5KW電機重量116KG，F(xiàn)AF77減速機加2.2KW電機重量125KG，F(xiàn)AF77減速機加3KW電機重量127KG，F(xiàn)AF77減速機加4KW電機重量139KG，F(xiàn)AF77減速機加5.5KW電機重量153KG，F(xiàn)AF77減速機加7.5KW電機重量166KG，F(xiàn)AF77減速機加11KW電機重量208KG。變頻電機減速機

FAF77減速機加油量：可加齒輪潤滑油

FAF77減速機M4安裝形式加8L，F(xiàn)AF77減速機M3安裝形式加4.3L，F(xiàn)AF77減速機M2安裝形式加7.3L，F(xiàn)AF77減速機M1安裝形式加5.9L，F(xiàn)AF77減速機M5安裝形式加6L，F(xiàn)AF77減速機M6安裝形式加6.3L。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝形式時,您必須根據改變后的安裝形式相應調整加注潤滑劑。上述中列出了安裝形式M1-M6的減速機相應的標準參考潤滑油注入量值。剎車電機減速機

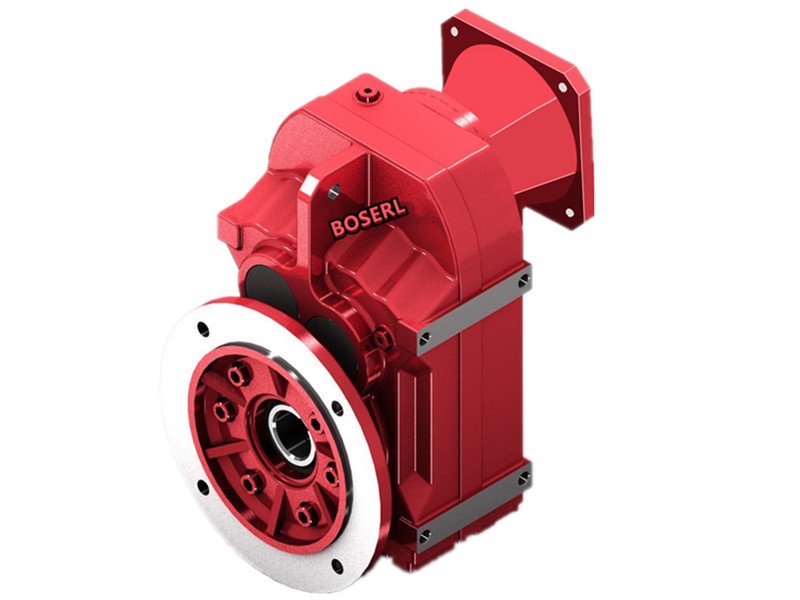

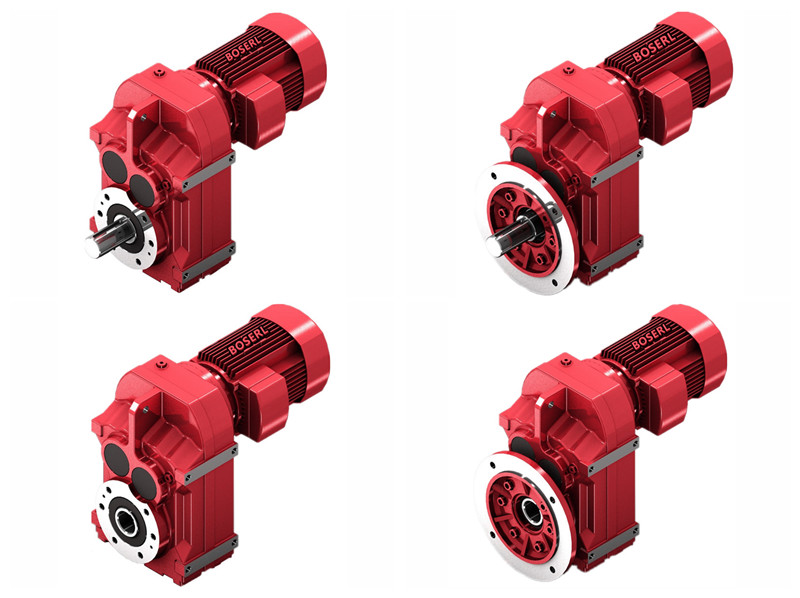

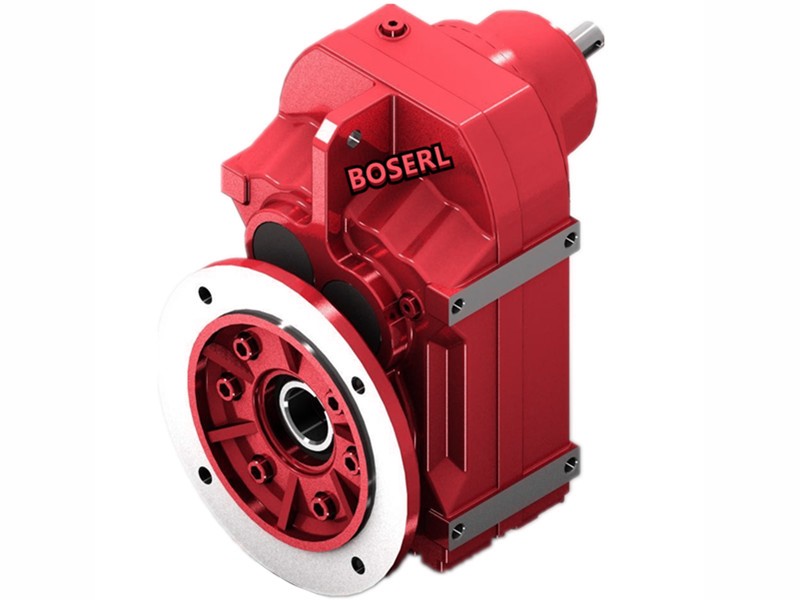

FAF77減速機實物圖：圖一為FAF77立式法蘭孔輸出平行軸斜齒輪減速機，圖二F77底腳安裝形式軸輸出平行軸減速機，圖三為FF77立式法蘭軸輸出平行軸斜齒輪減速機，圖四為FA77臥式孔輸出平行軸斜齒輪減速機。

FAF77減速機型號表示方法：

FAF77減速機型號結構FAF77-B3KW-4P-減速比-安裝形式-接線盒位置。

FAF77減速機性能參數表結構說明：HR手動釋放裝置，HF手動釋放裝置加自鎖功能，F(xiàn)AF77，F(xiàn)77，F(xiàn)F77，F(xiàn)A77減速機機座號，TF電機熱保護裝置，N代表徑向負荷，KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩。

FAF77減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝形式，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

FAF77減速機參數：

FAF77減速機輸出扭矩1500N.m，1450N.m，1110N.m，1380N.m，1430N.m，1080N.m，1010N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

FAF77減速機減速比

1:281，1:262，1:225，1:198，1:188，1:166，1:142，1:130，1:114，1:108，1:94，1:85，1:75，1:72，1:66，1:58，1:55，1:48，1:43，1:38，1:33，1:30，1:25，1:36，1:31，1:28，1:25，1:21，1:19，1:17，1:15，1:14，1:12，1:10，1:9，1:8，1:7，1:6，1:5，1:4

FAF77減速機輸出轉數5轉，6轉，7轉，8轉，9轉，11轉，12轉，13轉，15轉，16轉，19轉，21轉，24轉，25轉，29轉，32轉，37轉，41轉，47轉，55轉，38轉，44轉，49轉，55轉，65轉，71轉，80轉，90轉，100轉，115轉，128轉，151轉，169轉，189轉，211轉，243轉，271轉，327轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

FAF77減速機電機可加直流，變頻，剎車，防爆，伺服，交流，三相，單相電機FAF77加0.12KW，F(xiàn)AF77加0.18KW，F(xiàn)AF77加0.25KW，F(xiàn)AF77加0.37KW，F(xiàn)AF77加0.55KW，F(xiàn)AF77加0.75KW，F(xiàn)AF77加1.1KW，F(xiàn)AF77加1.5KW，F(xiàn)AF77加2.2KW，F(xiàn)AF77加3KW，F(xiàn)AF77加4KW，F(xiàn)AF77加5.5KW，F(xiàn)AF77加7.5KW，F(xiàn)AF77加11KW。

FAF77減速機外觀尺寸：輸出孔直徑Φ50+鍵3.8（可定做），高431*寬270*長234（帶法蘭）

FAF77減速機型號：FAF77AQA80,FAF77AQA100,FAF77AQA115,FAF77AQA140,FAF77AQA160,FAF77AQA190,FAF77AQH80,FAF77AQH100,FAF77AQH115,FAF77AQH140,FAF77AQH160,FAF77AQH190,JRTFAF77-Y0.18KW,JRTFAF77-Y0.25KW,JRTFAF77-Y0.37KW,JRTFAF77-Y0.55KW,JRTFAF77-Y0.75KW,JRTFAF77-Y1.1KW,JRTFAF77-Y1.5KW,JRTFAF77-Y100M4,JRTFAF77-Y112M4,JRTFAF77-Y11KW,JRTFAF77-Y132M4,JRTFAF77-Y160M4,JRTFAF77-Y2.2KW,JRTFAF77-Y3KW,JRTFAF77-Y4KW,JRTFAF77-Y5.5KW,JRTFAF77-Y63M4,JRTFAF77-Y7.5KW,JRTFAF77-Y71M4,JRTFAF77-Y80M4,JRTFAF77-Y90M4,JRTFAF77-YEJ100M4,JRTFAF77-YEJ112M4,JRTFAF77-YEJ132M4,JRTFAF77-YEJ160M4,JRTFAF77-YEJ63M4,JRTFAF77-YEJ71M4,JRTFAF77-YEJ80M4,JRTFAF77-YEJ90M4,JRTFAF77-YS100M4,JRTFAF77-YS112M4,JRTFAF77-YS132M4,JRTFAF77-YS160M4,JRTFAF77-YS63M4,JRTFAF77-YS71M4,JRTFAF77-YS80M4,JRTFAF77-YS90M4,JRTFAF77-YVP100M4,JRTFAF77-YVP112M4,JRTFAF77-YVP132M4,JRTFAF77-YVP160M4,JRTFAF77-YVP63M4,JRTFAF77-YVP71M4,JRTFAF77-YVP80M4,JRTFAF77-YVP90M4,JRTFAF77-YVPEJ100M4,JRTFAF77-YVPEJ112M4,JRTFAF77-YVPEJ132M4,JRTFAF77-YVPEJ160M4,JRTFAF77-YVPEJ63M4,JRTFAF77-YVPEJ71M4,JRTFAF77-YVPEJ80M4,JRTFAF77-YVPEJ90M4,EWFAF77-Y0.18KW,EWFAF77-Y0.25KW,EWFAF77-Y0.37KW,EWFAF77-Y0.55KW,EWFAF77-Y0.75KW,EWFAF77-Y1.1KW,EWFAF77-Y1.5KW,EWFAF77-Y100M4,EWFAF77-Y112M4,EWFAF77-Y11KW,EWFAF77-Y132M4,EWFAF77-Y160M4,EWFAF77-Y2.2KW,EWFAF77-Y3KW,EWFAF77-Y4KW,EWFAF77-Y5.5KW,EWFAF77-Y63M4,EWFAF77-Y7.5KW,EWFAF77-Y71M4,EWFAF77-Y80M4,EWFAF77-Y90M4,EWFAF77-YEJ100M4,EWFAF77-YEJ112M4,EWFAF77-YEJ132M4,EWFAF77-YEJ160M4,EWFAF77-YEJ63M4,EWFAF77-YEJ71M4,EWFAF77-YEJ80M4,EWFAF77-YEJ90M4,EWFAF77-YS100M4,EWFAF77-YS112M4,EWFAF77-YS132M4,EWFAF77-YS160M4,EWFAF77-YS63M4,EWFAF77-YS71M4,EWFAF77-YS80M4,EWFAF77-YS90M4,EWFAF77-YVP100M4,EWFAF77-YVP112M4,EWFAF77-YVP132M4,EWFAF77-YVP160M4,EWFAF77-YVP63M4,EWFAF77-YVP71M4,EWFAF77-YVP80M4,EWFAF77-YVP90M4,EWFAF77-YVPEJ100M4,EWFAF77-YVPEJ112M4,EWFAF77-YVPEJ132M4,EWFAF77-YVPEJ160M4,EWFAF77-YVPEJ63M4,EWFAF77-YVPEJ71M4,EWFAF77-YVPEJ80M4,EWFAF77-YVPEJ90M4,SLFAF77-Y0.18KW,SLFAF77-Y0.25KW,SLFAF77-Y0.37KW,SLFAF77-Y0.55KW,SLFAF77-Y0.75KW,SLFAF77-Y1.1KW,SLFAF77-Y1.5KW,SLFAF77-Y100M4,SLFAF77-Y112M4,SLFAF77-Y11KW,SLFAF77-Y132M4,SLFAF77-Y160M4,SLFAF77-Y2.2KW,SLFAF77-Y3KW,SLFAF77-Y4KW,SLFAF77-Y5.5KW,SLFAF77-Y63M4,SLFAF77-Y7.5KW,SLFAF77-Y71M4,SLFAF77-Y80M4,SLFAF77-Y90M4,SLFAF77-YEJ100M4,SLFAF77-YEJ112M4,SLFAF77-YEJ132M4,SLFAF77-YEJ160M4,SLFAF77-YEJ63M4,SLFAF77-YEJ71M4,SLFAF77-YEJ80M4,SLFAF77-YEJ90M4,SLFAF77-YS100M4,SLFAF77-YS112M4,SLFAF77-YS132M4,SLFAF77-YS160M4,SLFAF77-YS63M4,SLFAF77-YS71M4,SLFAF77-YS80M4,SLFAF77-YS90M4,SLFAF77-YVP100M4,SLFAF77-YVP112M4,SLFAF77-YVP132M4,SLFAF77-YVP160M4,SLFAF77-YVP63M4,SLFAF77-YVP71M4,SLFAF77-YVP80M4,SLFAF77-YVP90M4,SLFAF77-YVPEJ100M4,SLFAF77-YVPEJ112M4,SLFAF77-YVPEJ132M4,SLFAF77-YVPEJ160M4,SLFAF77-YVPEJ63M4,SLFAF77-YVPEJ71M4,SLFAF77-YVPEJ80M4,SLFAF77-YVPEJ90M4,DSZFAF77-Y0.18KW,DSZFAF77-Y0.25KW,DSZFAF77-Y0.37KW,DSZFAF77-Y0.55KW,DSZFAF77-Y0.75KW,DSZFAF77-Y1.1KW,DSZFAF77-Y1.5KW,DSZFAF77-Y100M4,DSZFAF77-Y112M4,DSZFAF77-Y11KW,DSZFAF77-Y132M4,DSZFAF77-Y160M4,DSZFAF77-Y2.2KW,DSZFAF77-Y3KW,DSZFAF77-Y4KW,DSZFAF77-Y5.5KW,DSZFAF77-Y63M4,DSZFAF77-Y7.5KW,DSZFAF77-Y71M4,DSZFAF77-Y80M4,DSZFAF77-Y90M4,DSZFAF77-YEJ100M4,DSZFAF77-YEJ112M4,DSZFAF77-YEJ132M4,DSZFAF77-YEJ160M4,DSZFAF77-YEJ63M4,DSZFAF77-YEJ71M4,DSZFAF77-YEJ80M4,DSZFAF77-YEJ90M4,DSZFAF77-YS100M4,DSZFAF77-YS112M4,DSZFAF77-YS132M4,DSZFAF77-YS160M4,DSZFAF77-YS63M4,DSZFAF77-YS71M4,DSZFAF77-YS80M4,DSZFAF77-YS90M4,DSZFAF77-YVP100M4,DSZFAF77-YVP112M4,DSZFAF77-YVP132M4,DSZFAF77-YVP160M4,DSZFAF77-YVP63M4,DSZFAF77-YVP71M4,DSZFAF77-YVP80M4,DSZFAF77-YVP90M4,DSZFAF77-YVPEJ100M4,DSZFAF77-YVPEJ112M4,DSZFAF77-YVPEJ132M4,DSZFAF77-YVPEJ160M4,DSZFAF77-YVPEJ63M4,DSZFAF77-YVPEJ71M4,DSZFAF77-YVPEJ80M4,DSZFAF77-YVPEJ90M4,BFAF77-Y0.18KW,BFAF77-Y0.25KW,BFAF77-Y0.37KW,BFAF77-Y0.55KW,BFAF77-Y0.75KW,BFAF77-Y1.1KW,BFAF77-Y1.5KW,BFAF77-Y100M4,BFAF77-Y112M4,BFAF77-Y11KW,BFAF77-Y132M4,BFAF77-Y160M4,BFAF77-Y2.2KW,BFAF77-Y3KW,BFAF77-Y4KW,BFAF77-Y5.5KW,BFAF77-Y63M4,BFAF77-Y7.5KW,BFAF77-Y71M4,BFAF77-Y80M4,BFAF77-Y90M4,BFAF77-YEJ100M4,BFAF77-YEJ112M4,BFAF77-YEJ132M4,BFAF77-YEJ160M4,BFAF77-YEJ63M4,BFAF77-YEJ71M4,BFAF77-YEJ80M4,BFAF77-YEJ90M4,BFAF77-YS100M4,BFAF77-YS112M4,BFAF77-YS132M4,BFAF77-YS160M4,BFAF77-YS63M4,BFAF77-YS71M4,BFAF77-YS80M4,BFAF77-YS90M4,BFAF77-YVP100M4,BFAF77-YVP112M4,BFAF77-YVP132M4,BFAF77-YVP160M4,BFAF77-YVP63M4,BFAF77-YVP71M4,BFAF77-YVP80M4,BFAF77-YVP90M4,BFAF77-YVPEJ100M4,BFAF77-YVPEJ112M4,BFAF77-YVPEJ132M4,BFAF77-YVPEJ160M4,BFAF77-YVPEJ63M4,BFAF77-YVPEJ71M4,BFAF77-YVPEJ80M4,BFAF77-YVPEJ90M4,GFAF77-Y0.18KW,GFAF77-Y0.25KW,GFAF77-Y0.37KW,GFAF77-Y0.55KW,GFAF77-Y0.75KW,GFAF77-Y1.1KW,GFAF77-Y1.5KW,GFAF77-Y100M4,GFAF77-Y112M4,GFAF77-Y11KW,GFAF77-Y132M4,GFAF77-Y160M4,GFAF77-Y2.2KW,GFAF77-Y3KW,GFAF77-Y4KW,GFAF77-Y5.5KW,GFAF77-Y63M4,GFAF77-Y7.5KW,GFAF77-Y71M4,GFAF77-Y80M4,GFAF77-Y90M4,GFAF77-YEJ100M4,GFAF77-YEJ112M4,GFAF77-YEJ132M4,GFAF77-YEJ160M4,GFAF77-YEJ63M4,GFAF77-YEJ71M4,GFAF77-YEJ80M4,GFAF77-YEJ90M4,GFAF77-YS100M4,GFAF77-YS112M4,GFAF77-YS132M4,GFAF77-YS160M4,GFAF77-YS63M4,GFAF77-YS71M4,GFAF77-YS80M4,GFAF77-YS90M4,GFAF77-YVP100M4,GFAF77-YVP112M4,GFAF77-YVP132M4,GFAF77-YVP160M4,GFAF77-YVP63M4,GFAF77-YVP71M4,GFAF77-YVP80M4,GFAF77-YVP90M4,GFAF77-YVPEJ100M4,GFAF77-YVPEJ112M4,GFAF77-YVPEJ132M4,GFAF77-YVPEJ160M4,GFAF77-YVPEJ63M4,GFAF77-YVPEJ71M4,GFAF77-YVPEJ80M4,GFAF77-YVPEJ90M4,FCAF77-Y0.18KW,FCAF77-Y0.25KW,FCAF77-Y0.37KW,FCAF77-Y0.55KW,FCAF77-Y0.75KW,FCAF77-Y1.1KW,FCAF77-Y1.5KW,FCAF77-Y100M4,FCAF77-Y112M4,FCAF77-Y11KW,FCAF77-Y132M4,FCAF77-Y160M4,FCAF77-Y2.2KW,FCAF77-Y3KW,FCAF77-Y4KW,FCAF77-Y5.5KW,FCAF77-Y63M4,FCAF77-Y7.5KW,FCAF77-Y71M4,FCAF77-Y80M4,FCAF77-Y90M4,FCAF77-YEJ100M4,FCAF77-YEJ112M4,FCAF77-YEJ132M4,FCAF77-YEJ160M4,FCAF77-YEJ63M4,FCAF77-YEJ71M4,FCAF77-YEJ80M4,FCAF77-YEJ90M4,FCAF77-YS100M4,FCAF77-YS112M4,FCAF77-YS132M4,FCAF77-YS160M4,FCAF77-YS63M4,FCAF77-YS71M4,FCAF77-YS80M4,FCAF77-YS90M4,FCAF77-YVP100M4,FCAF77-YVP112M4,FCAF77-YVP132M4,FCAF77-YVP160M4,FCAF77-YVP63M4,FCAF77-YVP71M4,FCAF77-YVP80M4,FCAF77-YVP90M4,FCAF77-YVPEJ100M4,FCAF77-YVPEJ112M4,FCAF77-YVPEJ132M4,FCAF77-YVPEJ160M4,FCAF77-YVPEJ63M4,FCAF77-YVPEJ71M4,FCAF77-YVPEJ80M4,FCAF77-YVPEJ90M4,MTPAF77-Y0.18KW,MTPAF77-Y0.25KW,MTPAF77-Y0.37KW,MTPAF77-Y0.55KW,MTPAF77-Y0.75KW,MTPAF77-Y1.1KW,MTPAF77-Y1.5KW,MTPAF77-Y100M4,MTPAF77-Y112M4,MTPAF77-Y11KW,MTPAF77-Y132M4,MTPAF77-Y160M4,MTPAF77-Y2.2KW,MTPAF77-Y3KW,MTPAF77-Y4KW,MTPAF77-Y5.5KW,MTPAF77-Y63M4,MTPAF77-Y7.5KW,MTPAF77-Y71M4,MTPAF77-Y80M4,MTPAF77-Y90M4,MTPAF77-YEJ100M4,MTPAF77-YEJ112M4,MTPAF77-YEJ132M4,MTPAF77-YEJ160M4,MTPAF77-YEJ63M4,MTPAF77-YEJ71M4,MTPAF77-YEJ80M4,MTPAF77-YEJ90M4,MTPAF77-YS100M4,MTPAF77-YS112M4,MTPAF77-YS132M4,MTPAF77-YS160M4,MTPAF77-YS63M4,MTPAF77-YS71M4,MTPAF77-YS80M4,MTPAF77-YS90M4,MTPAF77-YVP100M4,MTPAF77-YVP112M4,MTPAF77-YVP132M4,MTPAF77-YVP160M4,MTPAF77-YVP63M4,MTPAF77-YVP71M4,MTPAF77-YVP80M4,MTPAF77-YVP90M4,MTPAF77-YVPEJ100M4,MTPAF77-YVPEJ112M4,MTPAF77-YVPEJ132M4,MTPAF77-YVPEJ160M4,MTPAF77-YVPEJ63M4,MTPAF77-YVPEJ71M4,MTPAF77-YVPEJ80M4,MTPAF77-YVPEJ90M4,WXFAF77-WSS0.18KW,WXFAF77-WSS0.25KW,WXFAF77-WSS0.37KW,WXFAF77-WSS0.55KW,WXFAF77-WSS0.75KW,WXFAF77-WSS1.1KW,WXFAF77-WSS1.5KW,WXFAF77-WSS100M4,WXFAF77-WSS112M4,WXFAF77-WSS11KW,WXFAF77-WSS132M4,WXFAF77-WSS160M4,WXFAF77-WSS2.2KW,WXFAF77-WSS3KW,WXFAF77-WSS4KW,WXFAF77-WSS5.5KW,WXFAF77-WSS63M4,WXFAF77-WSS7.5KW,WXFAF77-WSS71M4,WXFAF77-WSS80M4,WXFAF77-WSS90M4,WXFAF77-WSSB100M4,WXFAF77-WSSB112M4,WXFAF77-WSSB132M4,WXFAF77-WSSB160M4,WXFAF77-WSSB63M4,WXFAF77-WSSB71M4,WXFAF77-WSSB80M4,WXFAF77-WSSB90M4,WXFAF77-WSSVP100M4,WXFAF77-WSSVP112M4,WXFAF77-WSSVP132M4,WXFAF77-WSSVP160M4,WXFAF77-WSSVP63M4,WXFAF77-WSSVP71M4,WXFAF77-WSSVP80M4,WXFAF77-WSSVP90M4,WXFAF77-WSSVPB100M4,WXFAF77-WSSVPB112M4,WXFAF77-WSSVPB132M4,WXFAF77-WSSVPB160M4,WXFAF77-WSSVPB63M4,WXFAF77-WSSVPB71M4,WXFAF77-WSSVPB80M4,WXFAF77-WSSVPB90M4。

FAF77減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://hjghgs.com/product/list-fafxiliejiansuji-cn.html

推薦類似型號：F77減速機
