FF87減速機重量：FF87減速機重量152公斤，F(xiàn)F87減速機帶電機重量分別如下

FF87減速機帶0.75KW電機重量168公斤，F(xiàn)F87減速機帶1.1KW電機重量172公斤，F(xiàn)F87減速機帶1.5KW電機重量175公斤，F(xiàn)F87減速機帶2.2KW電機重量184公斤，F(xiàn)F87減速機帶3KW電機重量190公斤，F(xiàn)F87減速機帶4KW電機重量198公斤，F(xiàn)F87減速機帶5.5KW電機重量212公斤，F(xiàn)F87減速機帶7.5KW電機重量225公斤，F(xiàn)F87減速機帶11KW電機重量267公斤，F(xiàn)F87減速機帶15KW電機重量287公斤，F(xiàn)F87減速機帶18.5KW電機重量324公斤，F(xiàn)F87減速機帶22KW電機重量337公斤。

FF87減速機加油量：可加合成油

FF87減速機M2安裝方式加13.2升，F(xiàn)F87減速機M1安裝方式加10.8升，F(xiàn)F87減速機M3安裝方式加7.8升，F(xiàn)F87減速機M4安裝方式加14.1升，F(xiàn)F87減速機M5安裝方式加11升，F(xiàn)F87減速機M6安裝方式加11.2升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式方式時，您必須根據改變后的安裝方式方式相應調整加注潤滑劑。上述中列出了安裝方式方式M1-M6的減速機相應的標準參考潤滑油注入量值。

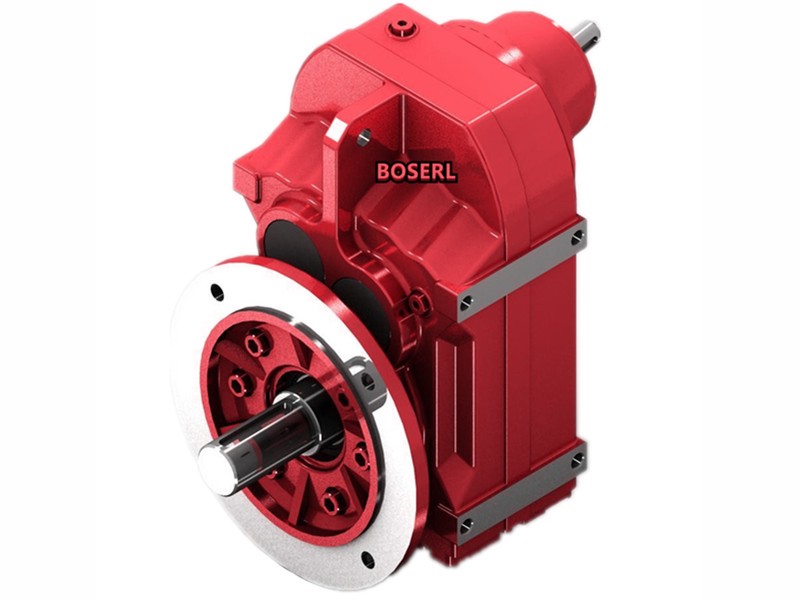

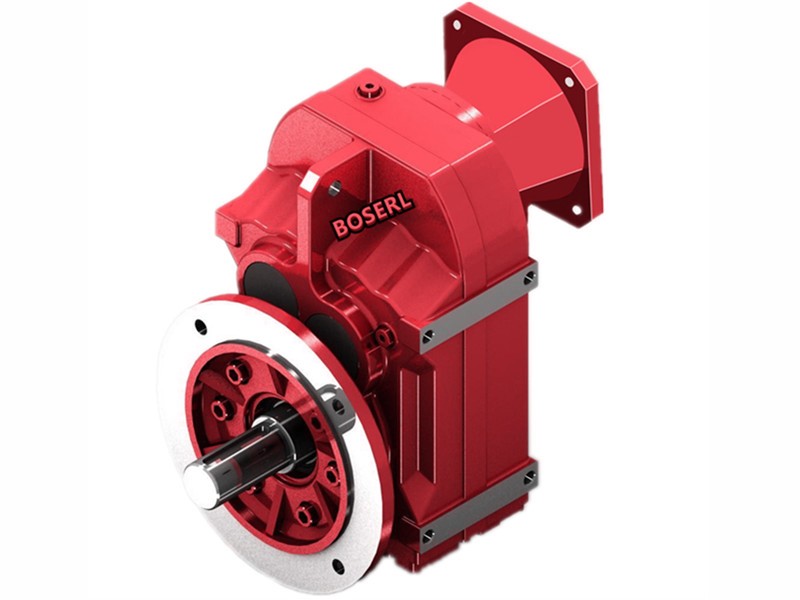

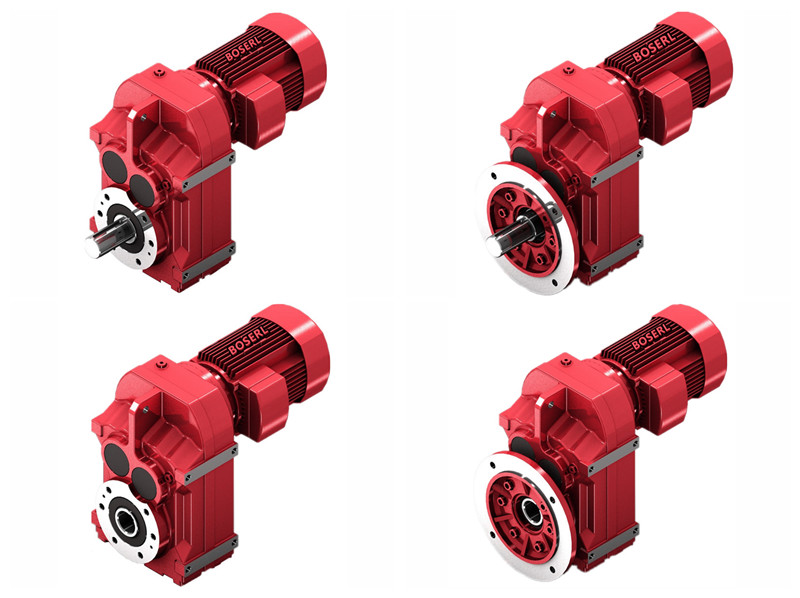

FF87減速機實物圖：圖一為FF87立式法蘭軸輸出平行軸斜齒輪減速機，圖二F87底腳安裝方式軸輸出平行軸減速機，圖三為FA87臥式孔輸出平行軸減速機，圖四為FAF87立式法蘭孔輸出平行軸斜齒輪減速機。

FF87減速機型號表示方法：

FF87減速機型號結構FF87-B18.5KW-4P-減速比-安裝方式方式-接線盒位置。

FF87減速機性能參數表結構說明：HF手動釋放裝置帶自鎖功能，F(xiàn)F87、F87、FA87、FAF87減速機機座號，HR手動釋放裝置，TF電機熱保護裝置，N代表徑向負荷，KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩。

FF87減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1安裝方式，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。可提供S和N兩種進線方位，其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

FF87減速機參數：

FF87減速機輸出轉數5.2轉，5.5轉，6.1轉，7.1轉，7.8轉，8.8轉，10轉，11轉，13轉，14轉，16轉，18轉，20轉，25轉，28轉，31轉，36轉，40轉，48轉，49轉，53轉，59轉，66轉，73轉，82轉，90轉，107轉，122轉，146轉，169轉，190轉，211轉，249轉，285轉，340轉。（以上轉數均為四級電機算出的，可用2P、6P、8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

FF87減速機電機可帶直流、變頻、剎車、防爆、伺服、交流、三相、單相電機FF87帶0.55KW，F(xiàn)F87帶0.75KW，F(xiàn)F87帶1.1KW，F(xiàn)F87帶1.5KW，F(xiàn)F87帶2.2KW，F(xiàn)F87帶3KW，F(xiàn)F87帶4KW，F(xiàn)F87帶5.5KW，F(xiàn)F87帶7.5KW，F(xiàn)F87帶11KW，F(xiàn)F87帶15KW，F(xiàn)F87帶18.5KW，F(xiàn)F87帶22KW。

FF87減速機輸出扭矩3000N.m，2940N.m，2880N.m，2820N.m，2720N.m，2610N.m，2510N.m，2450N.m，1530N.m，1460N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

FF87減速機減速比1:270，1:255，1:228，1:197，1:179，1:159，1:134，1:123，1:109，1:97，1:88，1:76，1:68，1:56，1:50，1:45，1:39，1:35，1:29，1:33，1:28，1:26，1:23，1:21，1:19，1:17，1:15，1:13，1:11，1:9，1:8，1:7，1:6，1:5，1:4。

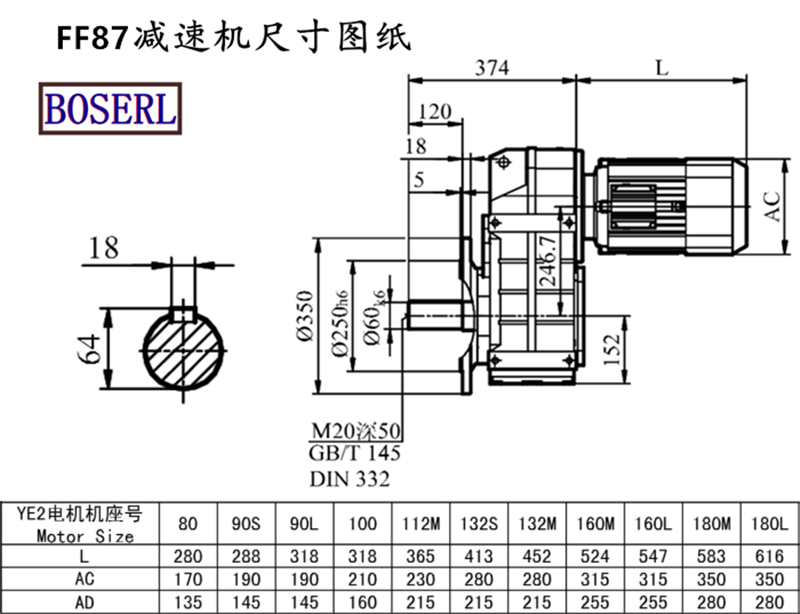

FF87減速機外形尺寸：輸出軸直徑Φ60+鍵4（可定做），高531*寬330*長374（帶輸出軸）剎車電機減速機

FF87減速機型號：FF87AQA80,FF87AQA100,FF87AQA115,FF87AQA140,FF87AQA160,FF87AQA190,FF87AQH80,FF87AQH100,FF87AQH115,FF87AQH140,FF87AQH160,FF87AQH190,JRTFF87-Y0.37KW,JRTFF87-Y0.55KW,JRTFF87-Y0.75KW,JRTFF87-Y1.1KW,JRTFF87-Y1.5KW,JRTFF87-Y100M4,JRTFF87-Y112M4,JRTFF87-Y11KW,JRTFF87-Y132M4,JRTFF87-Y15KW,JRTFF87-Y160M4,JRTFF87-Y18.5KW,JRTFF87-Y180M4,JRTFF87-Y2.2KW,JRTFF87-Y200M4,JRTFF87-Y22KW,JRTFF87-Y3KW,JRTFF87-Y4KW,JRTFF87-Y5.5KW,JRTFF87-Y7.5KW,JRTFF87-Y71M4,JRTFF87-Y80M4,JRTFF87-Y90M4,JRTFF87-YEJ100M4,JRTFF87-YEJ112M4,JRTFF87-YEJ132M4,JRTFF87-YEJ160M4,JRTFF87-YEJ180M4,JRTFF87-YEJ200M4,JRTFF87-YEJ71M4,JRTFF87-YEJ80M4,JRTFF87-YEJ90M4,JRTFF87-YS100M4,JRTFF87-YS112M4,JRTFF87-YS132M4,JRTFF87-YS160M4,JRTFF87-YS180M4,JRTFF87-YS200M4,JRTFF87-YS71M4,JRTFF87-YS80M4,JRTFF87-YS90M4,JRTFF87-YVP100M4,JRTFF87-YVP112M4,JRTFF87-YVP132M4,JRTFF87-YVP160M4,JRTFF87-YVP180M4,JRTFF87-YVP200M4,JRTFF87-YVP71M4,JRTFF87-YVP80M4,JRTFF87-YVP90M4,JRTFF87-YVPEJ100M4,JRTFF87-YVPEJ112M4,JRTFF87-YVPEJ132M4,JRTFF87-YVPEJ160M4,JRTFF87-YVPEJ180M4,JRTFF87-YVPEJ200M4,JRTFF87-YVPEJ71M4,JRTFF87-YVPEJ80M4,JRTFF87-YVPEJ90M4,EWFF87-Y0.37KW,EWFF87-Y0.55KW,EWFF87-Y0.75KW,EWFF87-Y1.1KW,EWFF87-Y1.5KW,EWFF87-Y100M4,EWFF87-Y112M4,EWFF87-Y11KW,EWFF87-Y132M4,EWFF87-Y15KW,EWFF87-Y160M4,EWFF87-Y18.5KW,EWFF87-Y180M4,EWFF87-Y2.2KW,EWFF87-Y200M4,EWFF87-Y22KW,EWFF87-Y3KW,EWFF87-Y4KW,EWFF87-Y5.5KW,EWFF87-Y7.5KW,EWFF87-Y71M4,EWFF87-Y80M4,EWFF87-Y90M4,EWFF87-YEJ100M4,EWFF87-YEJ112M4,EWFF87-YEJ132M4,EWFF87-YEJ160M4,EWFF87-YEJ180M4,EWFF87-YEJ200M4,EWFF87-YEJ71M4,EWFF87-YEJ80M4,EWFF87-YEJ90M4,EWFF87-YS100M4,EWFF87-YS112M4,EWFF87-YS132M4,EWFF87-YS160M4,EWFF87-YS180M4,EWFF87-YS200M4,EWFF87-YS71M4,EWFF87-YS80M4,EWFF87-YS90M4,EWFF87-YVP100M4,EWFF87-YVP112M4,EWFF87-YVP132M4,EWFF87-YVP160M4,EWFF87-YVP180M4,EWFF87-YVP200M4,EWFF87-YVP71M4,EWFF87-YVP80M4,EWFF87-YVP90M4,EWFF87-YVPEJ100M4,EWFF87-YVPEJ112M4,EWFF87-YVPEJ132M4,EWFF87-YVPEJ160M4,EWFF87-YVPEJ180M4,EWFF87-YVPEJ200M4,EWFF87-YVPEJ71M4,EWFF87-YVPEJ80M4,EWFF87-YVPEJ90M4,SLFF87-Y0.37KW,SLFF87-Y0.55KW,SLFF87-Y0.75KW,SLFF87-Y1.1KW,SLFF87-Y1.5KW,SLFF87-Y100M4,SLFF87-Y112M4,SLFF87-Y11KW,SLFF87-Y132M4,SLFF87-Y15KW,SLFF87-Y160M4,SLFF87-Y18.5KW,SLFF87-Y180M4,SLFF87-Y2.2KW,SLFF87-Y200M4,SLFF87-Y22KW,SLFF87-Y3KW,SLFF87-Y4KW,SLFF87-Y5.5KW,SLFF87-Y7.5KW,SLFF87-Y71M4,SLFF87-Y80M4,SLFF87-Y90M4,SLFF87-YEJ100M4,SLFF87-YEJ112M4,SLFF87-YEJ132M4,SLFF87-YEJ160M4,SLFF87-YEJ180M4,SLFF87-YEJ200M4,SLFF87-YEJ71M4,SLFF87-YEJ80M4,SLFF87-YEJ90M4,SLFF87-YS100M4,SLFF87-YS112M4,SLFF87-YS132M4,SLFF87-YS160M4,SLFF87-YS180M4,SLFF87-YS200M4,SLFF87-YS71M4,SLFF87-YS80M4,SLFF87-YS90M4,SLFF87-YVP100M4,SLFF87-YVP112M4,SLFF87-YVP132M4,SLFF87-YVP160M4,SLFF87-YVP180M4,SLFF87-YVP200M4,SLFF87-YVP71M4,SLFF87-YVP80M4,SLFF87-YVP90M4,SLFF87-YVPEJ100M4,SLFF87-YVPEJ112M4,SLFF87-YVPEJ132M4,SLFF87-YVPEJ160M4,SLFF87-YVPEJ180M4,SLFF87-YVPEJ200M4,SLFF87-YVPEJ71M4,SLFF87-YVPEJ80M4,SLFF87-YVPEJ90M4,DSZFF87-Y0.37KW,DSZFF87-Y0.55KW,DSZFF87-Y0.75KW,DSZFF87-Y1.1KW,DSZFF87-Y1.5KW,DSZFF87-Y100M4,DSZFF87-Y112M4,DSZFF87-Y11KW,DSZFF87-Y132M4,DSZFF87-Y15KW,DSZFF87-Y160M4,DSZFF87-Y18.5KW,DSZFF87-Y180M4,DSZFF87-Y2.2KW,DSZFF87-Y200M4,DSZFF87-Y22KW,DSZFF87-Y3KW,DSZFF87-Y4KW,DSZFF87-Y5.5KW,DSZFF87-Y7.5KW,DSZFF87-Y71M4,DSZFF87-Y80M4,DSZFF87-Y90M4,DSZFF87-YEJ100M4,DSZFF87-YEJ112M4,DSZFF87-YEJ132M4,DSZFF87-YEJ160M4,DSZFF87-YEJ180M4,DSZFF87-YEJ200M4,DSZFF87-YEJ71M4,DSZFF87-YEJ80M4,DSZFF87-YEJ90M4,DSZFF87-YS100M4,DSZFF87-YS112M4,DSZFF87-YS132M4,DSZFF87-YS160M4,DSZFF87-YS180M4,DSZFF87-YS200M4,DSZFF87-YS71M4,DSZFF87-YS80M4,DSZFF87-YS90M4,DSZFF87-YVP100M4,DSZFF87-YVP112M4,DSZFF87-YVP132M4,DSZFF87-YVP160M4,DSZFF87-YVP180M4,DSZFF87-YVP200M4,DSZFF87-YVP71M4,DSZFF87-YVP80M4,DSZFF87-YVP90M4,DSZFF87-YVPEJ100M4,DSZFF87-YVPEJ112M4,DSZFF87-YVPEJ132M4,DSZFF87-YVPEJ160M4,DSZFF87-YVPEJ180M4,DSZFF87-YVPEJ200M4,DSZFF87-YVPEJ71M4,DSZFF87-YVPEJ80M4,DSZFF87-YVPEJ90M4,BFF87-Y0.37KW,BFF87-Y0.55KW,BFF87-Y0.75KW,BFF87-Y1.1KW,BFF87-Y1.5KW,BFF87-Y100M4,BFF87-Y112M4,BFF87-Y11KW,BFF87-Y132M4,BFF87-Y15KW,BFF87-Y160M4,BFF87-Y18.5KW,BFF87-Y180M4,BFF87-Y2.2KW,BFF87-Y200M4,BFF87-Y22KW,BFF87-Y3KW,BFF87-Y4KW,BFF87-Y5.5KW,BFF87-Y7.5KW,BFF87-Y71M4,BFF87-Y80M4,BFF87-Y90M4,BFF87-YEJ100M4,BFF87-YEJ112M4,BFF87-YEJ132M4,BFF87-YEJ160M4,BFF87-YEJ180M4,BFF87-YEJ200M4,BFF87-YEJ71M4,BFF87-YEJ80M4,BFF87-YEJ90M4,BFF87-YS100M4,BFF87-YS112M4,BFF87-YS132M4,BFF87-YS160M4,BFF87-YS180M4,BFF87-YS200M4,BFF87-YS71M4,BFF87-YS80M4,BFF87-YS90M4,BFF87-YVP100M4,BFF87-YVP112M4,BFF87-YVP132M4,BFF87-YVP160M4,BFF87-YVP180M4,BFF87-YVP200M4,BFF87-YVP71M4,BFF87-YVP80M4,BFF87-YVP90M4,BFF87-YVPEJ100M4,BFF87-YVPEJ112M4,BFF87-YVPEJ132M4,BFF87-YVPEJ160M4,BFF87-YVPEJ180M4,BFF87-YVPEJ200M4,BFF87-YVPEJ71M4,BFF87-YVPEJ80M4,BFF87-YVPEJ90M4,GFF87-Y0.37KW,GFF87-Y0.55KW,GFF87-Y0.75KW,GFF87-Y1.1KW,GFF87-Y1.5KW,GFF87-Y100M4,GFF87-Y112M4,GFF87-Y11KW,GFF87-Y132M4,GFF87-Y15KW,GFF87-Y160M4,GFF87-Y18.5KW,GFF87-Y180M4,GFF87-Y2.2KW,GFF87-Y200M4,GFF87-Y22KW,GFF87-Y3KW,GFF87-Y4KW,GFF87-Y5.5KW,GFF87-Y7.5KW,GFF87-Y71M4,GFF87-Y80M4,GFF87-Y90M4,GFF87-YEJ100M4,GFF87-YEJ112M4,GFF87-YEJ132M4,GFF87-YEJ160M4,GFF87-YEJ180M4,GFF87-YEJ200M4,GFF87-YEJ71M4,GFF87-YEJ80M4,GFF87-YEJ90M4,GFF87-YS100M4,GFF87-YS112M4,GFF87-YS132M4,GFF87-YS160M4,GFF87-YS180M4,GFF87-YS200M4,GFF87-YS71M4,GFF87-YS80M4,GFF87-YS90M4,GFF87-YVP100M4,GFF87-YVP112M4,GFF87-YVP132M4,GFF87-YVP160M4,GFF87-YVP180M4,GFF87-YVP200M4,GFF87-YVP71M4,GFF87-YVP80M4,GFF87-YVP90M4,GFF87-YVPEJ100M4,GFF87-YVPEJ112M4,GFF87-YVPEJ132M4,GFF87-YVPEJ160M4,GFF87-YVPEJ180M4,GFF87-YVPEJ200M4,GFF87-YVPEJ71M4,GFF87-YVPEJ80M4,GFF87-YVPEJ90M4,FCF87-Y0.37KW,FCF87-Y0.55KW,FCF87-Y0.75KW,FCF87-Y1.1KW,FCF87-Y1.5KW,FCF87-Y100M4,FCF87-Y112M4,FCF87-Y11KW,FCF87-Y132M4,FCF87-Y15KW,FCF87-Y160M4,FCF87-Y18.5KW,FCF87-Y180M4,FCF87-Y2.2KW,FCF87-Y200M4,FCF87-Y22KW,FCF87-Y3KW,FCF87-Y4KW,FCF87-Y5.5KW,FCF87-Y7.5KW,FCF87-Y71M4,FCF87-Y80M4,FCF87-Y90M4,FCF87-YEJ100M4,FCF87-YEJ112M4,FCF87-YEJ132M4,FCF87-YEJ160M4,FCF87-YEJ180M4,FCF87-YEJ200M4,FCF87-YEJ71M4,FCF87-YEJ80M4,FCF87-YEJ90M4,FCF87-YS100M4,FCF87-YS112M4,FCF87-YS132M4,FCF87-YS160M4,FCF87-YS180M4,FCF87-YS200M4,FCF87-YS71M4,FCF87-YS80M4,FCF87-YS90M4,FCF87-YVP100M4,FCF87-YVP112M4,FCF87-YVP132M4,FCF87-YVP160M4,FCF87-YVP180M4,FCF87-YVP200M4,FCF87-YVP71M4,FCF87-YVP80M4,FCF87-YVP90M4,FCF87-YVPEJ100M4,FCF87-YVPEJ112M4,FCF87-YVPEJ132M4,FCF87-YVPEJ160M4,FCF87-YVPEJ180M4,FCF87-YVPEJ200M4,FCF87-YVPEJ71M4,FCF87-YVPEJ80M4,FCF87-YVPEJ90M4,MTPF87-Y0.37KW,MTPF87-Y0.55KW,MTPF87-Y0.75KW,MTPF87-Y1.1KW,MTPF87-Y1.5KW,MTPF87-Y100M4,MTPF87-Y112M4,MTPF87-Y11KW,MTPF87-Y132M4,MTPF87-Y15KW,MTPF87-Y160M4,MTPF87-Y18.5KW,MTPF87-Y180M4,MTPF87-Y2.2KW,MTPF87-Y200M4,MTPF87-Y22KW,MTPF87-Y3KW,MTPF87-Y4KW,MTPF87-Y5.5KW,MTPF87-Y7.5KW,MTPF87-Y71M4,MTPF87-Y80M4,MTPF87-Y90M4,MTPF87-YEJ100M4,MTPF87-YEJ112M4,MTPF87-YEJ132M4,MTPF87-YEJ160M4,MTPF87-YEJ180M4,MTPF87-YEJ200M4,MTPF87-YEJ71M4,MTPF87-YEJ80M4,MTPF87-YEJ90M4,MTPF87-YS100M4,MTPF87-YS112M4,MTPF87-YS132M4,MTPF87-YS160M4,MTPF87-YS180M4,MTPF87-YS200M4,MTPF87-YS71M4,MTPF87-YS80M4,MTPF87-YS90M4,MTPF87-YVP100M4,MTPF87-YVP112M4,MTPF87-YVP132M4,MTPF87-YVP160M4,MTPF87-YVP180M4,MTPF87-YVP200M4,MTPF87-YVP71M4,MTPF87-YVP80M4,MTPF87-YVP90M4,MTPF87-YVPEJ100M4,MTPF87-YVPEJ112M4,MTPF87-YVPEJ132M4,MTPF87-YVPEJ160M4,MTPF87-YVPEJ180M4,MTPF87-YVPEJ200M4,MTPF87-YVPEJ71M4,MTPF87-YVPEJ80M4,MTPF87-YVPEJ90M4,WXFF87-WSS0.37KW,WXFF87-WSS0.55KW,WXFF87-WSS0.75KW,WXFF87-WSS1.1KW,WXFF87-WSS1.5KW,WXFF87-WSS100M4,WXFF87-WSS112M4,WXFF87-WSS11KW,WXFF87-WSS132M4,WXFF87-WSS15KW,WXFF87-WSS160M4,WXFF87-WSS18.5KW,WXFF87-WSS180M4,WXFF87-WSS2.2KW,WXFF87-WSS200M4,WXFF87-WSS22KW,WXFF87-WSS3KW,WXFF87-WSS4KW,WXFF87-WSS5.5KW,WXFF87-WSS7.5KW,WXFF87-WSS71M4,WXFF87-WSS80M4,WXFF87-WSS90M4,WXFF87-WSSB100M4,WXFF87-WSSB112M4,WXFF87-WSSB132M4,WXFF87-WSSB160M4,WXFF87-WSSB180M4,WXFF87-WSSB200M4,WXFF87-WSSB71M4,WXFF87-WSSB80M4,WXFF87-WSSB90M4,WXFF87-WSSVP100M4,WXFF87-WSSVP112M4,WXFF87-WSSVP132M4,WXFF87-WSSVP160M4,WXFF87-WSSVP180M4,WXFF87-WSSVP200M4,WXFF87-WSSVP71M4,WXFF87-WSSVP80M4,WXFF87-WSSVP90M4,WXFF87-WSSVPB100M4,WXFF87-WSSVPB112M4,WXFF87-WSSVPB132M4,WXFF87-WSSVPB160M4,WXFF87-WSSVPB180M4,WXFF87-WSSVPB200M4,WXFF87-WSSVPB71M4,WXFF87-WSSVPB80M4,WXFF87-WSSVPB90M4。平行軸斜齒輪減速機
