K67減速機重量：K67減速機重量33公斤，K67減速機配電機重量分別如下

K67減速機配0.18KW電機重量39公斤，K67減速機配0.25KW電機重量43公斤，K67減速機配0.37KW電機重量43.5公斤，K67減速機配0.55KW電機重量48公斤，K67減速機配0.75KW電機重量50公斤，K67減速機配1.1KW電機重量53公斤，K67減速機配1.5KW電機重量56公斤，K67減速機配2.2KW電機重量65公斤，K67減速機配3KW電機重量68公斤，K67減速機配4KW電機重量79公斤，K67減速機配5.5KW電機重量93公斤。直角減速機

K67減速機加油量：可加礦物油

K67減速機M1安裝加1.1升，K67減速機M2安裝加2.4升，K67減速機M3安裝加2.6升，K67減速機M4安裝加3.45升，K67減速機M5安裝加2.6升，K67減速機M6安裝加2.6升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

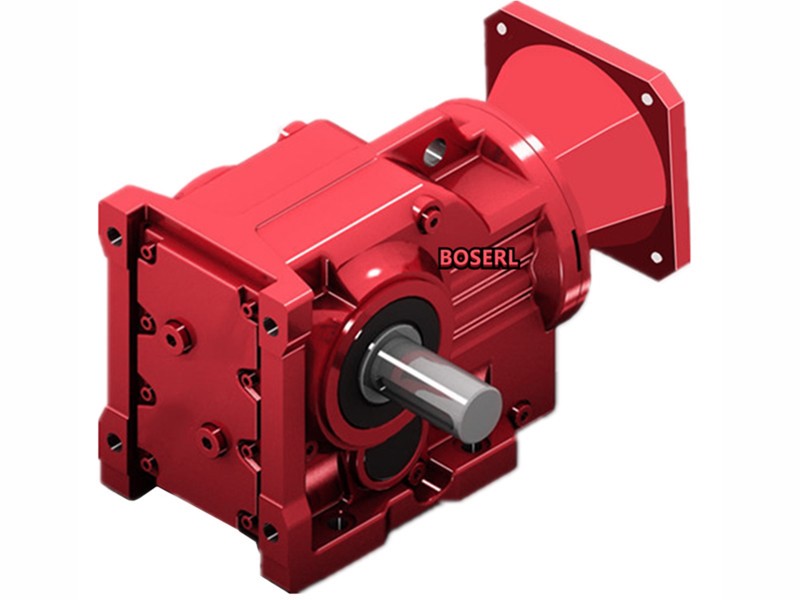

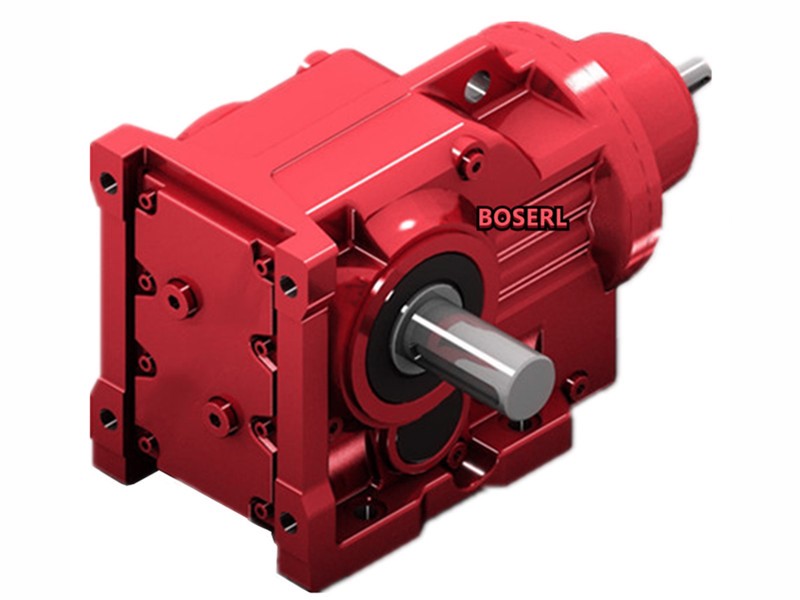

K67減速機實物圖：圖一為K67臥式安裝螺旋錐齒輪減速電機，圖二KF67立式安裝實心軸輸出螺旋錐齒輪減速電機，圖三為KA67臥式安裝空心軸螺旋錐齒輪減速電機，圖四為KAF67立式安裝直角空心軸螺旋錐齒輪減速機。

K67減速機型號表示方法：

K67減速機型號結構K67-B5.5KW-4P-減速比-安裝方式-接線盒位置。

K67減速機性能參數表結構說明：RS逆止器，V強制冷卻風扇，C防雨罩，Input Configuration代表輸入配置，TF電機熱保護裝置，K67、KF67、KA67、KAF67減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置帶自鎖功能。

K67減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向?yàn)?從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。K系列減速機

K67減速機結構圖：

K67減速機參數：

K67減速機電機可配單相/直流/變頻/剎車/防爆/伺服/交流/三相電機K67配0.18KW，K67配0.25KW，K67配0.37KW，K67配0.55KW，K67配0.75KW，K67配1.1KW，K67配1.5KW，K67配2.2KW，K67配3KW，K67配4KW，K67配5.5KW。

K67減速機減速比144.79比，123.54比，108.03比，102.62比，90.04比，76.37比，68.95比，60.66比，57.28比，48.77比，44.32比，38.39比，35.62比，30.22比，27.28比，24比，22.66比，19.3比，17.54比，15.19比，13.22比，12.48比，10.63比，9.66比，8.37比，7.28比，5.2比。

K67減速機輸出轉數9.7轉，11轉，13轉，14轉，16轉，18轉，20轉，23轉，24轉，29轉，32轉，36轉，39轉，46轉，51轉，58轉，62轉，73轉，80轉，92轉，106轉，112轉，132轉，145轉，167轉，192轉，269轉。（以上轉數均為四級電機算出的，可用2P/6P/8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

K67減速機輸出扭矩820N.m，780N.m，760N.m，740N.m，700N.m，670N.m，530N.m，500N.m，480N.m，440N.m，420N.m，350N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

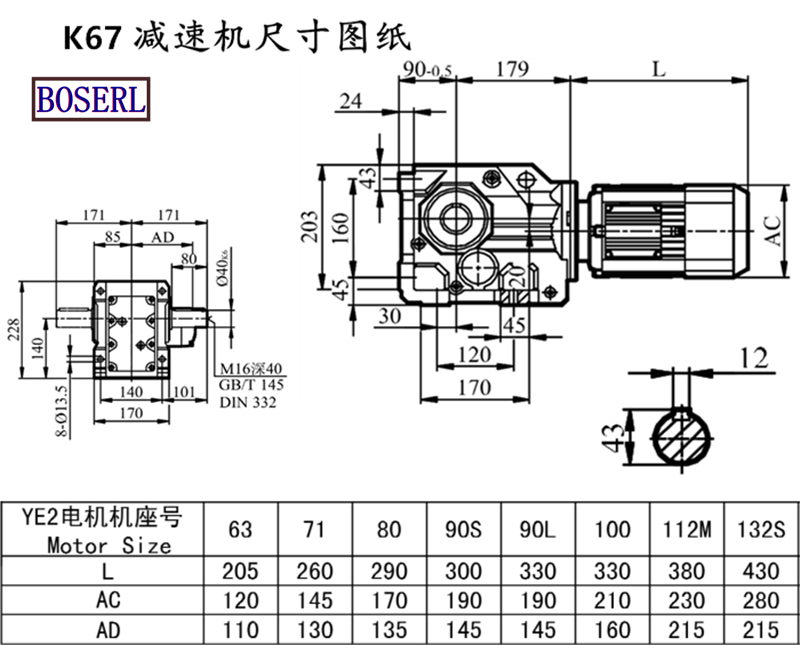

K67減速機尺寸圖紙：高228*寬256（帶輸出軸）*長269

K67減速機型號：

K67AQA80,K67AQA100,K67AQA115,K67AQA140,K67AQA160,K67AQA190,K67AQH80,K67AQH100,K67AQH115,K67AQH140,K67AQH160,K67AQH190,JRTK67-Y0.18KW,JRTK67-Y0.25KW,JRTK67-Y0.37KW,JRTK67-Y0.55KW,JRTK67-Y0.75KW,JRTK67-Y1.1KW,JRTK67-Y1.5KW,JRTK67-Y100M4,JRTK67-Y112M4,JRTK67-Y2.2KW,JRTK67-Y3KW,JRTK67-Y4KW,JRTK67-Y5.5KW,JRTK67-Y63M4,JRTK67-Y71M4,JRTK67-Y80M4,JRTK67-Y90M4,JRTK67-YEJ100M4,JRTK67-YEJ112M4,JRTK67-YEJ132M4,JRTK67-YEJ63M4,JRTK67-YEJ71M4,JRTK67-YEJ80M4,JRTK67-YEJ90M4,JRTK67-YS100M4,JRTK67-YS112M4,JRTK67-YS132M4,JRTK67-YS63M4,JRTK67-YS71M4,JRTK67-YS80M4,JRTK67-YS90M4,JRTK67-YVP100M4,JRTK67-YVP112M4,JRTK67-YVP132M4,JRTK67-YVP63M4,JRTK67-YVP71M4,JRTK67-YVP80M4,JRTK67-YVP90M4,JRTK67-YVPEJ100M4,JRTK67-YVPEJ112M4,JRTK67-YVPEJ132M4,JRTK67-YVPEJ63M4,JRTK67-YVPEJ71M4,JRTK67-YVPEJ80M4,JRTK67-YVPEJ90M4,EWK67-Y0.18KW,EWK67-Y0.25KW,EWK67-Y0.37KW,EWK67-Y0.55KW,EWK67-Y0.75KW,EWK67-Y1.1KW,EWK67-Y1.5KW,EWK67-Y100M4,EWK67-Y112M4,EWK67-Y2.2KW,EWK67-Y3KW,EWK67-Y4KW,EWK67-Y5.5KW,EWK67-Y63M4,EWK67-Y71M4,EWK67-Y80M4,EWK67-Y90M4,EWK67-YEJ100M4,EWK67-YEJ112M4,EWK67-YEJ132M4,EWK67-YEJ63M4,EWK67-YEJ71M4,EWK67-YEJ80M4,EWK67-YEJ90M4,EWK67-YS100M4,EWK67-YS112M4,EWK67-YS132M4,EWK67-YS63M4,EWK67-YS71M4,EWK67-YS80M4,EWK67-YS90M4,EWK67-YVP100M4,EWK67-YVP112M4,EWK67-YVP132M4,EWK67-YVP63M4,EWK67-YVP71M4,EWK67-YVP80M4,EWK67-YVP90M4,EWK67-YVPEJ100M4,EWK67-YVPEJ112M4,EWK67-YVPEJ132M4,EWK67-YVPEJ63M4,EWK67-YVPEJ71M4,EWK67-YVPEJ80M4,EWK67-YVPEJ90M4,SLK67-Y0.18KW,SLK67-Y0.25KW,SLK67-Y0.37KW,SLK67-Y0.55KW,SLK67-Y0.75KW,SLK67-Y1.1KW,SLK67-Y1.5KW,SLK67-Y100M4,SLK67-Y112M4,SLK67-Y2.2KW,SLK67-Y3KW,SLK67-Y4KW,SLK67-Y5.5KW,SLK67-Y63M4,SLK67-Y71M4,SLK67-Y80M4,SLK67-Y90M4,SLK67-YEJ100M4,SLK67-YEJ112M4,SLK67-YEJ132M4,SLK67-YEJ63M4,SLK67-YEJ71M4,SLK67-YEJ80M4,SLK67-YEJ90M4,SLK67-YS100M4,SLK67-YS112M4,SLK67-YS132M4,SLK67-YS63M4,SLK67-YS71M4,SLK67-YS80M4,SLK67-YS90M4,SLK67-YVP100M4,SLK67-YVP112M4,SLK67-YVP132M4,SLK67-YVP63M4,SLK67-YVP71M4,SLK67-YVP80M4,SLK67-YVP90M4,SLK67-YVPEJ100M4,SLK67-YVPEJ112M4,SLK67-YVPEJ132M4,SLK67-YVPEJ63M4,SLK67-YVPEJ71M4,SLK67-YVPEJ80M4,SLK67-YVPEJ90M4,DSZK67-Y0.18KW,DSZK67-Y0.25KW,DSZK67-Y0.37KW,DSZK67-Y0.55KW,DSZK67-Y0.75KW,DSZK67-Y1.1KW,DSZK67-Y1.5KW,DSZK67-Y100M4,DSZK67-Y112M4,DSZK67-Y2.2KW,DSZK67-Y3KW,DSZK67-Y4KW,DSZK67-Y5.5KW,DSZK67-Y63M4,DSZK67-Y71M4,DSZK67-Y80M4,DSZK67-Y90M4,DSZK67-YEJ100M4,DSZK67-YEJ112M4,DSZK67-YEJ132M4,DSZK67-YEJ63M4,DSZK67-YEJ71M4,DSZK67-YEJ80M4,DSZK67-YEJ90M4,DSZK67-YS100M4,DSZK67-YS112M4,DSZK67-YS132M4,DSZK67-YS63M4,DSZK67-YS71M4,DSZK67-YS80M4,DSZK67-YS90M4,DSZK67-YVP100M4,DSZK67-YVP112M4,DSZK67-YVP132M4,DSZK67-YVP63M4,DSZK67-YVP71M4,DSZK67-YVP80M4,DSZK67-YVP90M4,DSZK67-YVPEJ100M4,DSZK67-YVPEJ112M4,DSZK67-YVPEJ132M4,DSZK67-YVPEJ63M4,DSZK67-YVPEJ71M4,DSZK67-YVPEJ80M4,DSZK67-YVPEJ90M4,BK67-Y0.18KW,BK67-Y0.25KW,BK67-Y0.37KW,BK67-Y0.55KW,BK67-Y0.75KW,BK67-Y1.1KW,BK67-Y1.5KW,BK67-Y100M4,BK67-Y112M4,BK67-Y2.2KW,BK67-Y3KW,BK67-Y4KW,BK67-Y5.5KW,BK67-Y63M4,BK67-Y71M4,BK67-Y80M4,BK67-Y90M4,BK67-YEJ100M4,BK67-YEJ112M4,BK67-YEJ132M4,BK67-YEJ63M4,BK67-YEJ71M4,BK67-YEJ80M4,BK67-YEJ90M4,BK67-YS100M4,BK67-YS112M4,BK67-YS132M4,BK67-YS63M4,BK67-YS71M4,BK67-YS80M4,BK67-YS90M4,BK67-YVP100M4,BK67-YVP112M4,BK67-YVP132M4,BK67-YVP63M4,BK67-YVP71M4,BK67-YVP80M4,BK67-YVP90M4,BK67-YVPEJ100M4,BK67-YVPEJ112M4,BK67-YVPEJ132M4,BK67-YVPEJ63M4,BK67-YVPEJ71M4,BK67-YVPEJ80M4,BK67-YVPEJ90M4,GK67-Y0.18KW,GK67-Y0.25KW,GK67-Y0.37KW,GK67-Y0.55KW,GK67-Y0.75KW,GK67-Y1.1KW,GK67-Y1.5KW,GK67-Y100M4,GK67-Y112M4,GK67-Y2.2KW,GK67-Y3KW,GK67-Y4KW,GK67-Y5.5KW,GK67-Y63M4,GK67-Y71M4,GK67-Y80M4,GK67-Y90M4,GK67-YEJ100M4,GK67-YEJ112M4,GK67-YEJ132M4,GK67-YEJ63M4,GK67-YEJ71M4,GK67-YEJ80M4,GK67-YEJ90M4,GK67-YS100M4,GK67-YS112M4,GK67-YS132M4,GK67-YS63M4,GK67-YS71M4,GK67-YS80M4,GK67-YS90M4,GK67-YVP100M4,GK67-YVP112M4,GK67-YVP132M4,GK67-YVP63M4,GK67-YVP71M4,GK67-YVP80M4,GK67-YVP90M4,GK67-YVPEJ100M4,GK67-YVPEJ112M4,GK67-YVPEJ132M4,GK67-YVPEJ63M4,GK67-YVPEJ71M4,GK67-YVPEJ80M4,GK67-YVPEJ90M4,KC67-Y0.18KW,KC67-Y0.25KW,KC67-Y0.37KW,KC67-Y0.55KW,KC67-Y0.75KW,KC67-Y1.1KW,KC67-Y1.5KW,KC67-Y100M4,KC67-Y112M4,KC67-Y2.2KW,KC67-Y3KW,KC67-Y4KW,KC67-Y5.5KW,KC67-Y63M4,KC67-Y71M4,KC67-Y80M4,KC67-Y90M4,KC67-YEJ100M4,KC67-YEJ112M4,KC67-YEJ132M4,KC67-YEJ63M4,KC67-YEJ71M4,KC67-YEJ80M4,KC67-YEJ90M4,KC67-YS100M4,KC67-YS112M4,KC67-YS132M4,KC67-YS63M4,KC67-YS71M4,KC67-YS80M4,KC67-YS90M4,KC67-YVP100M4,KC67-YVP112M4,KC67-YVP132M4,KC67-YVP63M4,KC67-YVP71M4,KC67-YVP80M4,KC67-YVP90M4,KC67-YVPEJ100M4,KC67-YVPEJ112M4,KC67-YVPEJ132M4,KC67-YVPEJ63M4,KC67-YVPEJ71M4,KC67-YVPEJ80M4,KC67-YVPEJ90M4,MTJ67-Y0.18KW,MTJ67-Y0.25KW,MTJ67-Y0.37KW,MTJ67-Y0.55KW,MTJ67-Y0.75KW,MTJ67-Y1.1KW,MTJ67-Y1.5KW,MTJ67-Y100M4,MTJ67-Y112M4,MTJ67-Y2.2KW,MTJ67-Y3KW,MTJ67-Y4KW,MTJ67-Y5.5KW,MTJ67-Y63M4,MTJ67-Y71M4,MTJ67-Y80M4,MTJ67-Y90M4,MTJ67-YEJ100M4,MTJ67-YEJ112M4,MTJ67-YEJ132M4,MTJ67-YEJ63M4,MTJ67-YEJ71M4,MTJ67-YEJ80M4,MTJ67-YEJ90M4,MTJ67-YS100M4,MTJ67-YS112M4,MTJ67-YS132M4,MTJ67-YS63M4,MTJ67-YS71M4,MTJ67-YS80M4,MTJ67-YS90M4,MTJ67-YVP100M4,MTJ67-YVP112M4,MTJ67-YVP132M4,MTJ67-YVP63M4,MTJ67-YVP71M4,MTJ67-YVP80M4,MTJ67-YVP90M4,MTJ67-YVPEJ100M4,MTJ67-YVPEJ112M4,MTJ67-YVPEJ132M4,MTJ67-YVPEJ63M4,MTJ67-YVPEJ71M4,MTJ67-YVPEJ80M4,MTJ67-YVPEJ90M4,WXK67-WSS0.18KW,WXK67-WSS0.25KW,WXK67-WSS0.37KW,WXK67-WSS0.55KW,WXK67-WSS0.75KW,WXK67-WSS1.1KW,WXK67-WSS1.5KW,WXK67-WSS100M4,WXK67-WSS112M4,WXK67-WSS2.2KW,WXK67-WSS3KW,WXK67-WSS4KW,WXK67-WSS5.5KW,WXK67-WSS63M4,WXK67-WSS71M4,WXK67-WSS80M4,WXK67-WSS90M4,WXK67-WSSB100M4,WXK67-WSSB112M4,WXK67-WSSB132M4,WXK67-WSSB63M4,WXK67-WSSB71M4,WXK67-WSSB80M4,WXK67-WSSB90M4,WXK67-WSSVP100M4,WXK67-WSSVP112M4,WXK67-WSSVP132M4,WXK67-WSSVP63M4,WXK67-WSSVP71M4,WXK67-WSSVP80M4,WXK67-WSSVP90M4,WXK67-WSSVPB100M4,WXK67-WSSVPB112M4,WXK67-WSSVPB132M4,WXK67-WSSVPB63M4,WXK67-WSSVPB71M4,WXK67-WSSVPB80M4,WXK67-WSSVPB90M4。
