RF77減速機重量：RF77減速機重量38公斤，RF77減速機帶電機重量分別如下：

RF77減速機帶0.18KW電機重量44公斤,RF77減速機帶0.25KW電機重量48公斤,RF77減速機帶0.37KW電機重量48.5公斤,RF77減速機帶0.55KW電機重量53公斤,RF77減速機帶0.75KW電機重量55公斤,RF77減速機帶1.1KW電機重量58公斤,RF77減速機帶1.5KW電機重量61公斤,RF77減速機帶2.2KW電機重量70公斤,RF77減速機帶3KW電機重量69公斤,RF77減速機帶4KW電機重量84公斤,RF77減速機帶5.5KW電機重量98公斤,RF77減速機帶7.5KW電機重量111公斤,RF77減速機帶11KW電機重量153公斤。

RF77減速機加油量：可加合成油齒輪減速機

RF77減速機M2安裝加3.3、4.2升，RF77減速機M1安裝加1.2、3升，RF77減速機M3安裝加3.6升，RF77減速機M4安裝加3.8升，RF77減速機M5安裝加2.5升，RF77減速機M6安裝加3.4升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。同軸減速機

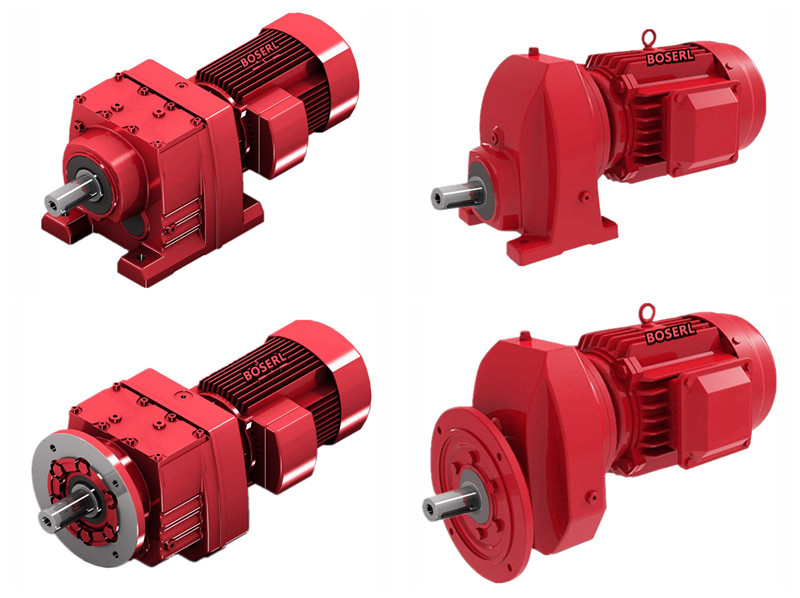

RF77減速機實物圖：圖一為RF77法蘭立式安裝斜齒輪減速機，圖二為R77底腳安裝斜齒輪減速機，圖三為RX77減速機不同心臥式底腳安裝，圖四為RXF77減速機不同心立式法蘭安裝。

RF77減速機型號表示方法：

RF77減速機型號結構RF77-B7.5KW-4P-減速比-安裝方式-接線盒位置。

RF77減速機性能參數表結構說明：1/min代表輸出轉數，KW代表電機功率，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，F(xiàn)rame size代表基座規格，Input Configuration代表輸入帶置。

RF77減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1安裝，方向?yàn)?從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。RF系列減速機

RF77減速機參數：

RF77減速機電機可帶剎車、變頻、防爆、伺服、交流、直流、三相、單相電機RF77帶0.18KW,RF77帶0.25KW,RF77帶0.37KW,RF77帶0.55KW,RF77帶0.75KW,RF77帶1.1KW,RF77帶1.5KW,RF77帶2.2KW,RF77帶3KW,RF77帶4KW,RF77帶5.5KW,RF77帶7.5KW,RF77帶11KW。

RF77減速機輸出轉速7.2轉,8.4轉,9.6轉,10轉,12轉,14轉,15轉,17轉,18轉,21轉,24轉,27轉,31轉,32轉,38轉,42轉,48轉,55轉,60轉,65轉,74轉,79轉,90轉,100轉,114轉,129轉,145轉,163轉,181轉,206轉,234轉,264轉。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RF77減速機負載扭矩510N.m,540N.m,580N.m,610N.m,630N.m,690N.m,720N.m,740N.m,780N.m,780N.m,820N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

RF77減速機減速比5.31比,5.99比,6.79比,7.74比,8.59比,9.64比,10.88比,12.33比,14.05比,15.6比,17.82比,18.8比,21.43比,23.37比,25.23比,29比,33.47比,36.83比,43.26比,52.07比,54.81比,57.68比,65.77比,77.24比,81.8比,92.97比,102.99比。

RF77減速機外形尺寸：輸出軸Φ40+鍵3（可定做），高228*寬235*長300（帶輸出軸）

RF77減速機型號：

RF77AQA80,RF77AQA100,RF77AQA115,RF77AQA140,RF77AQA160,RF77AQA190,RF77AQH80,RF77AQH100,RF77AQH115,RF77AQH140,RF77AQH160,RF77AQH190,JRTRF77-Y0.18KW,JRTRF77-Y0.25KW,JRTRF77-Y0.37KW,JRTRF77-Y0.55KW,JRTRF77-Y0.75KW,JRTRF77-Y1.1KW,JRTRF77-Y1.5KW,JRTRF77-Y100M4,JRTRF77-Y112M4,JRTRF77-Y11KW,JRTRF77-Y132M4,JRTRF77-Y15KW,JRTRF77-Y160M4,JRTRF77-Y2.2KW,JRTRF77-Y3KW,JRTRF77-Y4KW,JRTRF77-Y5.5KW,JRTRF77-Y7.5KW,JRTRF77-Y71M4,JRTRF77-Y80M4,JRTRF77-Y90M4,JRTRF77-YEJ100M4,JRTRF77-YEJ112M4,JRTRF77-YEJ132M4,JRTRF77-YEJ160M4,JRTRF77-YEJ71M4,JRTRF77-YEJ80M4,JRTRF77-YEJ90M4,JRTRF77-YS100M4,JRTRF77-YS112M4,JRTRF77-YS132M4,JRTRF77-YS160M4,JRTRF77-YS71M4,JRTRF77-YS80M4,JRTRF77-YS90M4,JRTRF77-YVP100M4,JRTRF77-YVP112M4,JRTRF77-YVP132M4,JRTRF77-YVP160M4,JRTRF77-YVP71M4,JRTRF77-YVP80M4,JRTRF77-YVP90M4,JRTRF77-YVPEJ100M4,JRTRF77-YVPEJ112M4,JRTRF77-YVPEJ132M4,JRTRF77-YVPEJ160M4,JRTRF77-YVPEJ71M4,JRTRF77-YVPEJ80M4,JRTRF77-YVPEJ90M4,EWRF77-Y0.18KW,EWRF77-Y0.25KW,EWRF77-Y0.37KW,EWRF77-Y0.55KW,EWRF77-Y0.75KW,EWRF77-Y1.1KW,EWRF77-Y1.5KW,EWRF77-Y100M4,EWRF77-Y112M4,EWRF77-Y11KW,EWRF77-Y132M4,EWRF77-Y15KW,EWRF77-Y160M4,EWRF77-Y2.2KW,EWRF77-Y3KW,EWRF77-Y4KW,EWRF77-Y5.5KW,EWRF77-Y7.5KW,EWRF77-Y71M4,EWRF77-Y80M4,EWRF77-Y90M4,EWRF77-YEJ100M4,EWRF77-YEJ112M4,EWRF77-YEJ132M4,EWRF77-YEJ160M4,EWRF77-YEJ71M4,EWRF77-YEJ80M4,EWRF77-YEJ90M4,EWRF77-YS100M4,EWRF77-YS112M4,EWRF77-YS132M4,EWRF77-YS160M4,EWRF77-YS71M4,EWRF77-YS80M4,EWRF77-YS90M4,EWRF77-YVP100M4,EWRF77-YVP112M4,EWRF77-YVP132M4,EWRF77-YVP160M4,EWRF77-YVP71M4,EWRF77-YVP80M4,EWRF77-YVP90M4,EWRF77-YVPEJ100M4,EWRF77-YVPEJ112M4,EWRF77-YVPEJ132M4,EWRF77-YVPEJ160M4,EWRF77-YVPEJ71M4,EWRF77-YVPEJ80M4,EWRF77-YVPEJ90M4,SLRF77-Y0.18KW,SLRF77-Y0.25KW,SLRF77-Y0.37KW,SLRF77-Y0.55KW,SLRF77-Y0.75KW,SLRF77-Y1.1KW,SLRF77-Y1.5KW,SLRF77-Y100M4,SLRF77-Y112M4,SLRF77-Y11KW,SLRF77-Y132M4,SLRF77-Y15KW,SLRF77-Y160M4,SLRF77-Y2.2KW,SLRF77-Y3KW,SLRF77-Y4KW,SLRF77-Y5.5KW,SLRF77-Y7.5KW,SLRF77-Y71M4,SLRF77-Y80M4,SLRF77-Y90M4,SLRF77-YEJ100M4,SLRF77-YEJ112M4,SLRF77-YEJ132M4,SLRF77-YEJ160M4,SLRF77-YEJ71M4,SLRF77-YEJ80M4,SLRF77-YEJ90M4,SLRF77-YS100M4,SLRF77-YS112M4,SLRF77-YS132M4,SLRF77-YS160M4,SLRF77-YS71M4,SLRF77-YS80M4,SLRF77-YS90M4,SLRF77-YVP100M4,SLRF77-YVP112M4,SLRF77-YVP132M4,SLRF77-YVP160M4,SLRF77-YVP71M4,SLRF77-YVP80M4,SLRF77-YVP90M4,SLRF77-YVPEJ100M4,SLRF77-YVPEJ112M4,SLRF77-YVPEJ132M4,SLRF77-YVPEJ160M4,SLRF77-YVPEJ71M4,SLRF77-YVPEJ80M4,SLRF77-YVPEJ90M4,DSZRF77-Y0.18KW,DSZRF77-Y0.25KW,DSZRF77-Y0.37KW,DSZRF77-Y0.55KW,DSZRF77-Y0.75KW,DSZRF77-Y1.1KW,DSZRF77-Y1.5KW,DSZRF77-Y100M4,DSZRF77-Y112M4,DSZRF77-Y11KW,DSZRF77-Y132M4,DSZRF77-Y15KW,DSZRF77-Y160M4,DSZRF77-Y2.2KW,DSZRF77-Y3KW,DSZRF77-Y4KW,DSZRF77-Y5.5KW,DSZRF77-Y7.5KW,DSZRF77-Y71M4,DSZRF77-Y80M4,DSZRF77-Y90M4,DSZRF77-YEJ100M4,DSZRF77-YEJ112M4,DSZRF77-YEJ132M4,DSZRF77-YEJ160M4,DSZRF77-YEJ71M4,DSZRF77-YEJ80M4,DSZRF77-YEJ90M4,DSZRF77-YS100M4,DSZRF77-YS112M4,DSZRF77-YS132M4,DSZRF77-YS160M4,DSZRF77-YS71M4,DSZRF77-YS80M4,DSZRF77-YS90M4,DSZRF77-YVP100M4,DSZRF77-YVP112M4,DSZRF77-YVP132M4,DSZRF77-YVP160M4,DSZRF77-YVP71M4,DSZRF77-YVP80M4,DSZRF77-YVP90M4,DSZRF77-YVPEJ100M4,DSZRF77-YVPEJ112M4,DSZRF77-YVPEJ132M4,DSZRF77-YVPEJ160M4,DSZRF77-YVPEJ71M4,DSZRF77-YVPEJ80M4,DSZRF77-YVPEJ90M4,BRF77-Y0.18KW,BRF77-Y0.25KW,BRF77-Y0.37KW,BRF77-Y0.55KW,BRF77-Y0.75KW,BRF77-Y1.1KW,BRF77-Y1.5KW,BRF77-Y100M4,BRF77-Y112M4,BRF77-Y11KW,BRF77-Y132M4,BRF77-Y15KW,BRF77-Y160M4,BRF77-Y2.2KW,BRF77-Y3KW,BRF77-Y4KW,BRF77-Y5.5KW,BRF77-Y7.5KW,BRF77-Y71M4,BRF77-Y80M4,BRF77-Y90M4,BRF77-YEJ100M4,BRF77-YEJ112M4,BRF77-YEJ132M4,BRF77-YEJ160M4,BRF77-YEJ71M4,BRF77-YEJ80M4,BRF77-YEJ90M4,BRF77-YS100M4,BRF77-YS112M4,BRF77-YS132M4,BRF77-YS160M4,BRF77-YS71M4,BRF77-YS80M4,BRF77-YS90M4,BRF77-YVP100M4,BRF77-YVP112M4,BRF77-YVP132M4,BRF77-YVP160M4,BRF77-YVP71M4,BRF77-YVP80M4,BRF77-YVP90M4,BRF77-YVPEJ100M4,BRF77-YVPEJ112M4,BRF77-YVPEJ132M4,BRF77-YVPEJ160M4,BRF77-YVPEJ71M4,BRF77-YVPEJ80M4,BRF77-YVPEJ90M4,GRF77-Y0.18KW,GRF77-Y0.25KW,GRF77-Y0.37KW,GRF77-Y0.55KW,GRF77-Y0.75KW,GRF77-Y1.1KW,GRF77-Y1.5KW,GRF77-Y100M4,GRF77-Y112M4,GRF77-Y11KW,GRF77-Y132M4,GRF77-Y15KW,GRF77-Y160M4,GRF77-Y2.2KW,GRF77-Y3KW,GRF77-Y4KW,GRF77-Y5.5KW,GRF77-Y7.5KW,GRF77-Y71M4,GRF77-Y80M4,GRF77-Y90M4,GRF77-YEJ100M4,GRF77-YEJ112M4,GRF77-YEJ132M4,GRF77-YEJ160M4,GRF77-YEJ71M4,GRF77-YEJ80M4,GRF77-YEJ90M4,GRF77-YS100M4,GRF77-YS112M4,GRF77-YS132M4,GRF77-YS160M4,GRF77-YS71M4,GRF77-YS80M4,GRF77-YS90M4,GRF77-YVP100M4,GRF77-YVP112M4,GRF77-YVP132M4,GRF77-YVP160M4,GRF77-YVP71M4,GRF77-YVP80M4,GRF77-YVP90M4,GRF77-YVPEJ100M4,GRF77-YVPEJ112M4,GRF77-YVPEJ132M4,GRF77-YVPEJ160M4,GRF77-YVPEJ71M4,GRF77-YVPEJ80M4,GRF77-YVPEJ90M4,RCF77-Y0.18KW,RCF77-Y0.25KW,RCF77-Y0.37KW,RCF77-Y0.55KW,RCF77-Y0.75KW,RCF77-Y1.1KW,RCF77-Y1.5KW,RCF77-Y100M4,RCF77-Y112M4,RCF77-Y11KW,RCF77-Y132M4,RCF77-Y15KW,RCF77-Y160M4,RCF77-Y2.2KW,RCF77-Y3KW,RCF77-Y4KW,RCF77-Y5.5KW,RCF77-Y7.5KW,RCF77-Y71M4,RCF77-Y80M4,RCF77-Y90M4,RCF77-YEJ100M4,RCF77-YEJ112M4,RCF77-YEJ132M4,RCF77-YEJ160M4,RCF77-YEJ71M4,RCF77-YEJ80M4,RCF77-YEJ90M4,RCF77-YS100M4,RCF77-YS112M4,RCF77-YS132M4,RCF77-YS160M4,RCF77-YS71M4,RCF77-YS80M4,RCF77-YS90M4,RCF77-YVP100M4,RCF77-YVP112M4,RCF77-YVP132M4,RCF77-YVP160M4,RCF77-YVP71M4,RCF77-YVP80M4,RCF77-YVP90M4,RCF77-YVPEJ100M4,RCF77-YVPEJ112M4,RCF77-YVPEJ132M4,RCF77-YVPEJ160M4,RCF77-YVPEJ71M4,RCF77-YVPEJ80M4,RCF77-YVPEJ90M4,MTDF77-Y0.18KW,MTDF77-Y0.25KW,MTDF77-Y0.37KW,MTDF77-Y0.55KW,MTDF77-Y0.75KW,MTDF77-Y1.1KW,MTDF77-Y1.5KW,MTDF77-Y100M4,MTDF77-Y112M4,MTDF77-Y11KW,MTDF77-Y132M4,MTDF77-Y15KW,MTDF77-Y160M4,MTDF77-Y2.2KW,MTDF77-Y3KW,MTDF77-Y4KW,MTDF77-Y5.5KW,MTDF77-Y7.5KW,MTDF77-Y71M4,MTDF77-Y80M4,MTDF77-Y90M4,MTDF77-YEJ100M4,MTDF77-YEJ112M4,MTDF77-YEJ132M4,MTDF77-YEJ160M4,MTDF77-YEJ71M4,MTDF77-YEJ80M4,MTDF77-YEJ90M4,MTDF77-YS100M4,MTDF77-YS112M4,MTDF77-YS132M4,MTDF77-YS160M4,MTDF77-YS71M4,MTDF77-YS80M4,MTDF77-YS90M4,MTDF77-YVP100M4,MTDF77-YVP112M4,MTDF77-YVP132M4,MTDF77-YVP160M4,MTDF77-YVP71M4,MTDF77-YVP80M4,MTDF77-YVP90M4,MTDF77-YVPEJ100M4,MTDF77-YVPEJ112M4,MTDF77-YVPEJ132M4,MTDF77-YVPEJ160M4,MTDF77-YVPEJ71M4,MTDF77-YVPEJ80M4,MTDF77-YVPEJ90M4,WXRF77-WSS0.18KW,WXRF77-WSS0.25KW,WXRF77-WSS0.37KW,WXRF77-WSS0.55KW,WXRF77-WSS0.75KW,WXRF77-WSS1.1KW,WXRF77-WSS1.5KW,WXRF77-WSS100M4,WXRF77-WSS112M4,WXRF77-WSS11KW,WXRF77-WSS132M4,WXRF77-WSS15KW,WXRF77-WSS160M4,WXRF77-WSS2.2KW,WXRF77-WSS3KW,WXRF77-WSS4KW,WXRF77-WSS5.5KW,WXRF77-WSS7.5KW,WXRF77-WSS71M4,WXRF77-WSS80M4,WXRF77-WSS90M4,WXRF77-WSSB100M4,WXRF77-WSSB112M4,WXRF77-WSSB132M4,WXRF77-WSSB160M4,WXRF77-WSSB71M4,WXRF77-WSSB80M4,WXRF77-WSSB90M4,WXRF77-WSSVP100M4,WXRF77-WSSVP112M4,WXRF77-WSSVP132M4,WXRF77-WSSVP160M4,WXRF77-WSSVP71M4,WXRF77-WSSVP80M4,WXRF77-WSSVP90M4,WXRF77-WSSVPB100M4,WXRF77-WSSVPB112M4,WXRF77-WSSVPB132M4,WXRF77-WSSVPB160M4,WXRF77-WSSVPB71M4,WXRF77-WSSVPB80M4,WXRF77-WSSVPB90M4。

RF77減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://hjghgs.com/product/list-rfxiliejiansuji-cn.html
